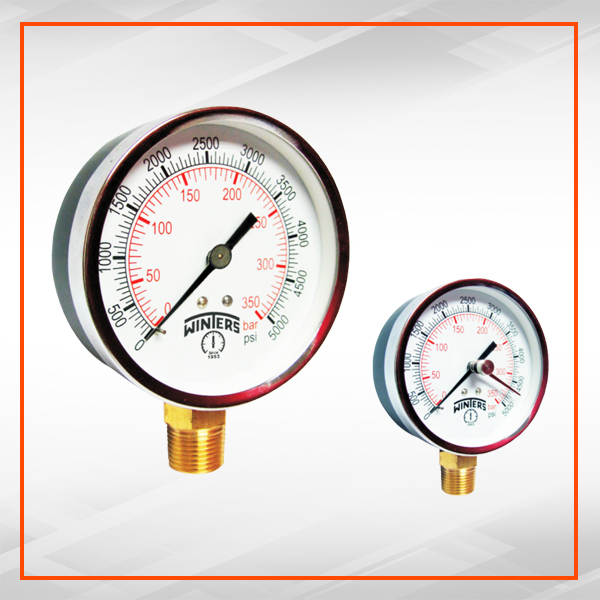

Description
• Pressure Range: from 0…100 kPa to 0…15000psi;
• 1.5”, 2”, 2.5”, 4” dial sizes are available
• Laser welded between case and socket
• StabiliZR movements are available;
Applications:
• HVAC
• Petrochemical
• OEM
• Hydraulic station and system
Dial size
●1.5”, 2”, 2.5”, 4”
Accuracy (25℃)
●1.5” and 2” : ±2.5% of full scale
●2.5, 4” (100mm) : ±1.6% of full scale ANSI/ASME Grade 1A
Case material
●304SS
Element material
●Brass , 316SS
Socket material
●Brass , 316SS or
Pointer material
●Aluminum painted black
Dial scale
●Aluminum painted white with black word
Window material
●PC
Temperature
●Ambient temperature -20…70℃
●Medium temperature -40…150℃(dry) -40…100℃(Filled)
●Storage temperature -20~70℃
Pressure limitation(brass)
●Steady: 75%FS;
●Fluctuating: 65%FS;
●Short time: 100%FS
●Pressure limitation(SS)
●Pressure range≤600bar
●Steady: 100%FS Fluctuation: 90%FS Short time: 130%FS
Pressure range>600bar
●Steady: 75%FS Fluctuation: 65%FS Short time: 100%FS
IP protection
●IP65 EN 60529
●hermal drift
●Max ±0.04% F.S/℃ refer at 25℃
●Standard unit
●Single scale: MPa, kPa, bar, kg/cm2, psi
●Dual scale: bar/psi, kg/cm2/psi, MPa/psi, kpa/psi Others please contact with us
